Amazon RDSのパラメータグループのパラメータの変更可否
Amazon RDSのパラメータグループの各パラメータは、AWS マネージメントコンソールにログインして確認可能ですが、本日時点(2018/12/13)での主なパラメータグループを貼り付けておきます。以下のAWS CLIとjq、columnコマンドを使って抽出しています。mysql 5.7, postgresql 9.5, oracle ee 12.1のdefaultのパラメータグループについて取得できたものを載せています。正確な値については、AWSマネージメントコンソールにログイン、あるいはAWS CLIやAWS SDKを使って確認します。
aws rds describe-db-parameters --db-parameter-group-name default.mysql5.7 \ | jq -r '.Parameters[] | [.ParameterName, .IsModifiable, .ApplyMethod] \ | @tsv' | column -t
上記コマンドを実行して得られた結果は以下です。Parameter NameとIsModifiable, ApplyMethodのみ表示しています。
default.mysql5.7
IsModifiableが変更可能かどうか?、ApplyMethodが変更の適用タイミングです。
Parameter Name IsModifiable ApplyMethod allow-suspicious-udfs false pending-reboot auto_generate_certs false pending-reboot auto_increment_increment true pending-reboot auto_increment_offset true pending-reboot autocommit true pending-reboot automatic_sp_privileges true pending-reboot avoid_temporal_upgrade true pending-reboot back_log true pending-reboot basedir false pending-reboot binlog_cache_size true pending-reboot binlog_checksum true pending-reboot binlog_error_action true pending-reboot binlog_format true pending-reboot binlog_group_commit_sync_delay true pending-reboot binlog_group_commit_sync_no_delay_count true pending-reboot binlog_gtid_simple_recovery true pending-reboot binlog_max_flush_queue_time true pending-reboot binlog_order_commits true pending-reboot binlog_row_image true pending-reboot binlog_rows_query_log_events true pending-reboot binlog_stmt_cache_size true pending-reboot block_encryption_mode true pending-reboot bulk_insert_buffer_size true pending-reboot character-set-client-handshake true pending-reboot character_set_client true pending-reboot character_set_connection true pending-reboot character_set_database true pending-reboot character_set_filesystem true pending-reboot character_set_results true pending-reboot character_set_server true pending-reboot check_proxy_users true pending-reboot collation_connection true pending-reboot collation_server true pending-reboot completion_type true pending-reboot concurrent_insert true pending-reboot connect_timeout true pending-reboot core-file false pending-reboot datadir false pending-reboot default_authentication_plugin false pending-reboot default_password_lifetime true pending-reboot default_storage_engine false pending-reboot default_time_zone false pending-reboot default_tmp_storage_engine false pending-reboot default_week_format true pending-reboot delay_key_write true pending-reboot delayed_insert_limit true pending-reboot delayed_insert_timeout true pending-reboot delayed_queue_size true pending-reboot disabled_storage_engines false pending-reboot disconnect_on_expired_password true pending-reboot div_precision_increment true pending-reboot end_markers_in_json true pending-reboot enforce_gtid_consistency true pending-reboot eq_range_index_dive_limit true pending-reboot event_scheduler true pending-reboot explicit_defaults_for_timestamp true pending-reboot flush false pending-reboot flush_time true pending-reboot ft_boolean_syntax false pending-reboot ft_max_word_len true pending-reboot ft_min_word_len true pending-reboot ft_query_expansion_limit true pending-reboot ft_stopword_file true pending-reboot general_log true pending-reboot general_log_file false pending-reboot group_concat_max_len true pending-reboot gtid-mode true pending-reboot gtid_executed_compression_period true pending-reboot gtid_purged false pending-reboot host_cache_size true pending-reboot init_connect true pending-reboot innodb_adaptive_flushing true pending-reboot innodb_adaptive_flushing_lwm true pending-reboot innodb_adaptive_hash_index true pending-reboot innodb_adaptive_hash_index_parts true pending-reboot innodb_adaptive_max_sleep_delay true pending-reboot innodb_autoextend_increment true pending-reboot innodb_autoinc_lock_mode true pending-reboot innodb_buffer_pool_chunk_size true pending-reboot innodb_buffer_pool_dump_at_shutdown true pending-reboot innodb_buffer_pool_dump_now false pending-reboot innodb_buffer_pool_dump_pct true pending-reboot innodb_buffer_pool_filename false pending-reboot innodb_buffer_pool_instances true pending-reboot innodb_buffer_pool_load_abort false pending-reboot innodb_buffer_pool_load_at_startup true pending-reboot innodb_buffer_pool_load_now false pending-reboot innodb_buffer_pool_size true pending-reboot innodb_change_buffer_max_size true pending-reboot innodb_change_buffering true pending-reboot innodb_checksum_algorithm true pending-reboot innodb_cmp_per_index_enabled true pending-reboot innodb_commit_concurrency true pending-reboot innodb_compression_failure_threshold_pct true pending-reboot innodb_compression_level true pending-reboot innodb_compression_pad_pct_max true pending-reboot innodb_concurrency_tickets true pending-reboot innodb_data_home_dir false pending-reboot innodb_deadlock_detect true pending-reboot innodb_default_row_format true pending-reboot innodb_disable_sort_file_cache true pending-reboot innodb_fast_shutdown true pending-reboot innodb_file_format true pending-reboot innodb_file_per_table true pending-reboot innodb_fill_factor true pending-reboot innodb_flush_log_at_timeout false pending-reboot innodb_flush_log_at_trx_commit true pending-reboot innodb_flush_method true pending-reboot innodb_flush_neighbors true pending-reboot innodb_flush_sync true pending-reboot innodb_flushing_avg_loops false pending-reboot innodb_force_load_corrupted false pending-reboot innodb_ft_aux_table true pending-reboot innodb_ft_cache_size true pending-reboot innodb_ft_enable_diag_print true pending-reboot innodb_ft_enable_stopword true pending-reboot innodb_ft_max_token_size true pending-reboot innodb_ft_min_token_size true pending-reboot innodb_ft_num_word_optimize true pending-reboot innodb_ft_result_cache_limit true pending-reboot innodb_ft_server_stopword_table true pending-reboot innodb_ft_sort_pll_degree true pending-reboot innodb_ft_total_cache_size true pending-reboot innodb_ft_user_stopword_table true pending-reboot innodb_io_capacity true pending-reboot innodb_io_capacity_max true pending-reboot innodb_large_prefix true pending-reboot innodb_lock_wait_timeout true pending-reboot innodb_log_buffer_size true pending-reboot innodb_log_checksums true pending-reboot innodb_log_compressed_pages true pending-reboot innodb_log_file_size true pending-reboot innodb_log_group_home_dir false pending-reboot innodb_log_write_ahead_size true pending-reboot innodb_lru_scan_depth true pending-reboot innodb_max_dirty_pages_pct true pending-reboot innodb_max_dirty_pages_pct_lwm true pending-reboot innodb_max_purge_lag true pending-reboot innodb_max_purge_lag_delay true pending-reboot innodb_max_undo_log_size true pending-reboot innodb_monitor_disable true pending-reboot innodb_monitor_enable true pending-reboot innodb_monitor_reset true pending-reboot innodb_monitor_reset_all true pending-reboot innodb_old_blocks_pct true pending-reboot innodb_old_blocks_time true pending-reboot innodb_online_alter_log_max_size true pending-reboot innodb_open_files true pending-reboot innodb_optimize_fulltext_only true pending-reboot innodb_page_cleaners true pending-reboot innodb_page_size false pending-reboot innodb_print_all_deadlocks true pending-reboot innodb_purge_batch_size true pending-reboot innodb_purge_rseg_truncate_frequency true pending-reboot innodb_purge_threads true pending-reboot innodb_random_read_ahead true pending-reboot innodb_read_ahead_threshold true pending-reboot innodb_read_io_threads true pending-reboot innodb_read_only false pending-reboot innodb_replication_delay true pending-reboot innodb_rollback_on_timeout true pending-reboot innodb_rollback_segments true pending-reboot innodb_sort_buffer_size true pending-reboot innodb_spin_wait_delay true pending-reboot innodb_stats_auto_recalc true pending-reboot innodb_stats_method true pending-reboot innodb_stats_on_metadata true pending-reboot innodb_stats_persistent true pending-reboot innodb_stats_persistent_sample_pages true pending-reboot innodb_stats_transient_sample_pages true pending-reboot innodb_status_output true pending-reboot innodb_status_output_locks true pending-reboot innodb_strict_mode true pending-reboot innodb_support_xa true pending-reboot innodb_sync_array_size true pending-reboot innodb_sync_spin_loops true pending-reboot innodb_table_locks true pending-reboot innodb_temp_data_file_path false pending-reboot innodb_thread_concurrency true pending-reboot innodb_thread_sleep_delay true pending-reboot innodb_undo_directory false pending-reboot innodb_undo_log_truncate true pending-reboot innodb_undo_logs true pending-reboot innodb_undo_tablespaces false pending-reboot innodb_use_native_aio true pending-reboot innodb_write_io_threads true pending-reboot interactive_timeout true pending-reboot internal_tmp_disk_storage_engine true pending-reboot join_buffer_size true pending-reboot keep_files_on_create true pending-reboot key_buffer_size true pending-reboot key_cache_age_threshold true pending-reboot key_cache_block_size true pending-reboot key_cache_division_limit true pending-reboot lc_time_names true pending-reboot local_infile true pending-reboot lock_wait_timeout true pending-reboot log-bin false pending-reboot log_bin_trust_function_creators true pending-reboot log_bin_use_v1_row_events true pending-reboot log_builtin_as_identified_by_password true pending-reboot log_error false pending-reboot log_error_verbosity true pending-reboot log_output true pending-reboot log_queries_not_using_indexes true pending-reboot log_slave_updates false pending-reboot log_slow_admin_statements true pending-reboot log_slow_slave_statements true pending-reboot log_statements_unsafe_for_binlog false pending-reboot log_syslog false pending-reboot log_syslog_facility false pending-reboot log_syslog_include_pid false pending-reboot log_syslog_tag false pending-reboot log_throttle_queries_not_using_indexes true pending-reboot log_timestamps true pending-reboot log_warnings true pending-reboot long_query_time true pending-reboot low_priority_updates true pending-reboot lower_case_table_names true pending-reboot master-info-repository true pending-reboot master_verify_checksum true pending-reboot max_allowed_packet true pending-reboot max_binlog_cache_size true pending-reboot max_binlog_size false pending-reboot max_binlog_stmt_cache_size true pending-reboot max_connect_errors true pending-reboot max_connections true pending-reboot max_delayed_threads true pending-reboot max_digest_length false pending-reboot max_error_count true pending-reboot max_execution_time true pending-reboot max_heap_table_size true pending-reboot max_insert_delayed_threads true pending-reboot max_join_size true pending-reboot max_length_for_sort_data true pending-reboot max_points_in_geometry true pending-reboot max_prepared_stmt_count true pending-reboot max_seeks_for_key true pending-reboot max_sort_length true pending-reboot max_sp_recursion_depth true pending-reboot max_tmp_tables true pending-reboot max_user_connections true pending-reboot max_write_lock_count true pending-reboot mecab_rc_file false pending-reboot metadata_locks_cache_size true pending-reboot min_examined_row_limit true pending-reboot myisam_data_pointer_size true pending-reboot myisam_max_sort_file_size true pending-reboot myisam_mmap_size true pending-reboot myisam_sort_buffer_size true pending-reboot myisam_stats_method true pending-reboot myisam_use_mmap true pending-reboot mysql_native_password_proxy_users true pending-reboot net_buffer_length true pending-reboot net_read_timeout true pending-reboot net_retry_count true pending-reboot net_write_timeout true pending-reboot ngram_token_size true pending-reboot offline_mode false pending-reboot old-style-user-limits true pending-reboot old_passwords true pending-reboot optimizer_prune_level true pending-reboot optimizer_search_depth true pending-reboot optimizer_switch true pending-reboot optimizer_trace true pending-reboot optimizer_trace_features true pending-reboot optimizer_trace_limit true pending-reboot optimizer_trace_max_mem_size true pending-reboot optimizer_trace_offset true pending-reboot performance_schema true pending-reboot performance_schema_accounts_size true pending-reboot performance_schema_digests_size true pending-reboot performance_schema_events_stages_history_long_size true pending-reboot performance_schema_events_stages_history_size true pending-reboot performance_schema_events_statements_history_long_size true pending-reboot performance_schema_events_statements_history_size true pending-reboot performance_schema_events_transactions_history_long_size true pending-reboot performance_schema_events_transactions_history_size true pending-reboot performance_schema_events_waits_history_long_size true pending-reboot performance_schema_events_waits_history_size true pending-reboot performance_schema_hosts_size true pending-reboot performance_schema_max_cond_classes true pending-reboot performance_schema_max_cond_instances true pending-reboot performance_schema_max_digest_length true pending-reboot performance_schema_max_file_classes true pending-reboot performance_schema_max_file_handles true pending-reboot performance_schema_max_file_instances true pending-reboot performance_schema_max_index_stat true pending-reboot performance_schema_max_memory_classes true pending-reboot performance_schema_max_metadata_locks true pending-reboot performance_schema_max_mutex_classes true pending-reboot performance_schema_max_mutex_instances true pending-reboot performance_schema_max_prepared_statements_instances true pending-reboot performance_schema_max_program_instances true pending-reboot performance_schema_max_rwlock_classes true pending-reboot performance_schema_max_rwlock_instances true pending-reboot performance_schema_max_socket_classes true pending-reboot performance_schema_max_socket_instances true pending-reboot performance_schema_max_sql_text_length true pending-reboot performance_schema_max_stage_classes true pending-reboot performance_schema_max_statement_classes true pending-reboot performance_schema_max_statement_stack true pending-reboot performance_schema_max_table_handles true pending-reboot performance_schema_max_table_instances true pending-reboot performance_schema_max_table_lock_stat true pending-reboot performance_schema_max_thread_classes true pending-reboot performance_schema_max_thread_instances true pending-reboot performance_schema_session_connect_attrs_size true pending-reboot performance_schema_setup_actors_size true pending-reboot performance_schema_setup_objects_size true pending-reboot performance_schema_users_size true pending-reboot pid_file false pending-reboot plugin_dir false pending-reboot port false pending-reboot preload_buffer_size true pending-reboot profiling_history_size true pending-reboot query_alloc_block_size true pending-reboot query_cache_limit true pending-reboot query_cache_min_res_unit true pending-reboot query_cache_size true pending-reboot query_cache_type true pending-reboot query_cache_wlock_invalidate true pending-reboot query_prealloc_size true pending-reboot range_alloc_block_size true pending-reboot range_optimizer_max_mem_size true pending-reboot read_buffer_size true pending-reboot read_only true pending-reboot read_rnd_buffer_size true pending-reboot relay-log false pending-reboot relay_log_info_repository true pending-reboot relay_log_recovery false pending-reboot require_secure_transport false pending-reboot rpl_semi_sync_master_wait_for_slave_count false pending-reboot rpl_semi_sync_master_wait_point false pending-reboot rpl_stop_slave_timeout false pending-reboot safe-user-create true pending-reboot secure_auth false pending-reboot secure_file_priv false pending-reboot server_id false pending-reboot session_track_gtids true pending-reboot session_track_schema true pending-reboot session_track_state_change true pending-reboot session_track_system_variables true pending-reboot session_track_transaction_info true pending-reboot sha256_password_auto_generate_rsa_keys false pending-reboot sha256_password_proxy_users true pending-reboot show_compatibility_56 true pending-reboot show_old_temporals true pending-reboot skip-character-set-client-handshake true pending-reboot skip-slave-start false pending-reboot skip_external_locking false pending-reboot skip_name_resolve true pending-reboot skip_show_database true pending-reboot slave_allow_batching true pending-reboot slave_checkpoint_group true pending-reboot slave_checkpoint_period true pending-reboot slave_compressed_protocol true pending-reboot slave_net_timeout true pending-reboot slave_parallel_type true pending-reboot slave_parallel_workers true pending-reboot slave_pending_jobs_size_max true pending-reboot slave_preserve_commit_order true pending-reboot slave_rows_search_algorithms true pending-reboot slave_sql_verify_checksum true pending-reboot slave_transaction_retries true pending-reboot slave_type_conversions true pending-reboot slow_launch_time true pending-reboot slow_query_log true pending-reboot slow_query_log_file false pending-reboot socket false pending-reboot sort_buffer_size true pending-reboot sql_mode true pending-reboot sql_select_limit true pending-reboot stored_program_cache true pending-reboot super_read_only false pending-reboot sync_binlog true pending-reboot sync_frm true pending-reboot sync_master_info true pending-reboot sync_relay_log true pending-reboot sync_relay_log_info true pending-reboot sysdate-is-now true pending-reboot table_definition_cache true pending-reboot table_open_cache true pending-reboot table_open_cache_instances true pending-reboot temp-pool true pending-reboot thread_cache_size true pending-reboot thread_stack true pending-reboot time_zone true pending-reboot tls_version true pending-reboot tmp_table_size true pending-reboot tmpdir false pending-reboot transaction_alloc_block_size true pending-reboot transaction_prealloc_size true pending-reboot transaction_write_set_extraction false pending-reboot tx_isolation true pending-reboot updatable_views_with_limit true pending-reboot validate-password false pending-reboot validate_password_dictionary_file false pending-reboot validate_password_length false pending-reboot validate_password_mixed_case_count false pending-reboot validate_password_number_count false pending-reboot validate_password_policy false pending-reboot validate_password_special_char_count false pending-reboot wait_timeout true pending-reboot
default.postgres9.5
Parameter Name IsModifiable ApplyMethod application_name true pending-reboot archive_command false pending-reboot archive_timeout false pending-reboot array_nulls true pending-reboot authentication_timeout true pending-reboot auto_explain.log_analyze true pending-reboot auto_explain.log_buffers true pending-reboot auto_explain.log_format true pending-reboot auto_explain.log_min_duration true pending-reboot auto_explain.log_nested_statements true pending-reboot auto_explain.log_timing true pending-reboot auto_explain.log_triggers true pending-reboot auto_explain.log_verbose true pending-reboot autovacuum true pending-reboot autovacuum_analyze_scale_factor true pending-reboot autovacuum_analyze_threshold true pending-reboot autovacuum_freeze_max_age true pending-reboot autovacuum_max_workers true pending-reboot autovacuum_multixact_freeze_max_age true pending-reboot autovacuum_naptime true pending-reboot autovacuum_vacuum_cost_delay true pending-reboot autovacuum_vacuum_cost_limit true pending-reboot autovacuum_vacuum_scale_factor true pending-reboot autovacuum_vacuum_threshold true pending-reboot autovacuum_work_mem true pending-reboot backslash_quote true pending-reboot bgwriter_delay true pending-reboot bgwriter_lru_maxpages true pending-reboot bgwriter_lru_multiplier true pending-reboot bytea_output true pending-reboot check_function_bodies true pending-reboot checkpoint_completion_target true pending-reboot checkpoint_timeout true pending-reboot checkpoint_warning true pending-reboot client_encoding true pending-reboot client_min_messages true pending-reboot commit_delay true pending-reboot commit_siblings true pending-reboot config_file false pending-reboot constraint_exclusion true pending-reboot cpu_index_tuple_cost true pending-reboot cpu_operator_cost true pending-reboot cpu_tuple_cost true pending-reboot cursor_tuple_fraction true pending-reboot data_directory false pending-reboot datestyle true pending-reboot db_user_namespace false pending-reboot deadlock_timeout true pending-reboot debug_pretty_print true pending-reboot debug_print_parse true pending-reboot debug_print_plan true pending-reboot debug_print_rewritten true pending-reboot default_statistics_target true pending-reboot default_tablespace true pending-reboot default_transaction_deferrable true pending-reboot default_transaction_isolation true pending-reboot default_transaction_read_only true pending-reboot default_with_oids true pending-reboot effective_cache_size true pending-reboot effective_io_concurrency true pending-reboot enable_bitmapscan true pending-reboot enable_hashagg true pending-reboot enable_hashjoin true pending-reboot enable_indexonlyscan true pending-reboot enable_indexscan true pending-reboot enable_material true pending-reboot enable_mergejoin true pending-reboot enable_nestloop true pending-reboot enable_seqscan true pending-reboot enable_sort true pending-reboot enable_tidscan true pending-reboot escape_string_warning true pending-reboot exit_on_error false pending-reboot extra_float_digits true pending-reboot from_collapse_limit true pending-reboot fsync false pending-reboot full_page_writes false pending-reboot geqo true pending-reboot geqo_effort true pending-reboot geqo_generations true pending-reboot geqo_pool_size true pending-reboot geqo_seed true pending-reboot geqo_selection_bias true pending-reboot geqo_threshold true pending-reboot gin_fuzzy_search_limit true pending-reboot gin_pending_list_limit true pending-reboot hba_file false pending-reboot hot_standby_feedback true pending-reboot huge_pages true pending-reboot ident_file false pending-reboot intervalstyle true pending-reboot join_collapse_limit true pending-reboot lc_messages true pending-reboot lc_monetary true pending-reboot lc_numeric true pending-reboot lc_time true pending-reboot listen_addresses false pending-reboot lo_compat_privileges false pending-reboot log_autovacuum_min_duration true pending-reboot log_checkpoints true pending-reboot log_connections true pending-reboot log_destination false pending-reboot log_directory false pending-reboot log_disconnections true pending-reboot log_duration true pending-reboot log_error_verbosity true pending-reboot log_executor_stats true pending-reboot log_file_mode false pending-reboot log_filename true pending-reboot log_hostname true pending-reboot log_line_prefix false pending-reboot log_lock_waits true pending-reboot log_min_duration_statement true pending-reboot log_min_error_statement true pending-reboot log_min_messages true pending-reboot log_parser_stats true pending-reboot log_planner_stats true pending-reboot log_replication_commands true pending-reboot log_rotation_age true pending-reboot log_rotation_size true pending-reboot log_statement true pending-reboot log_statement_stats true pending-reboot log_temp_files true pending-reboot log_timezone false pending-reboot log_truncate_on_rotation false pending-reboot logging_collector false pending-reboot maintenance_work_mem true pending-reboot max_connections true pending-reboot max_files_per_process true pending-reboot max_locks_per_transaction true pending-reboot max_pred_locks_per_transaction true pending-reboot max_prepared_transactions true pending-reboot max_replication_slots true pending-reboot max_stack_depth true pending-reboot max_standby_archive_delay true pending-reboot max_standby_streaming_delay true pending-reboot max_wal_senders true pending-reboot max_wal_size true pending-reboot min_wal_size true pending-reboot operator_precedence_warning true pending-reboot password_encryption false pending-reboot pg_hint_plan.debug_print true pending-reboot pg_hint_plan.enable_hint true pending-reboot pg_hint_plan.enable_hint_table true pending-reboot pg_hint_plan.message_level true pending-reboot pg_hint_plan.parse_messages true pending-reboot pg_stat_statements.max true pending-reboot pg_stat_statements.save true pending-reboot pg_stat_statements.track true pending-reboot pg_stat_statements.track_utility true pending-reboot pgaudit.log true pending-reboot pgaudit.log_catalog true pending-reboot pgaudit.log_level true pending-reboot pgaudit.log_parameter true pending-reboot pgaudit.log_relation true pending-reboot pgaudit.log_statement_once true pending-reboot pgaudit.role true pending-reboot port false pending-reboot postgis.gdal_enabled_drivers true pending-reboot quote_all_identifiers true pending-reboot random_page_cost true pending-reboot rds.custom_dns_resolution true pending-reboot rds.extensions false pending-reboot rds.force_admin_logging_level true pending-reboot rds.force_autovacuum_logging_level true pending-reboot rds.force_ssl true pending-reboot rds.log_retention_period true pending-reboot rds.logical_replication true pending-reboot rds.max_tcp_buffers false pending-reboot rds.pg_stat_ramdisk_size true pending-reboot rds.rds_superuser_reserved_connections true pending-reboot rds.superuser_variables false pending-reboot restart_after_crash false pending-reboot row_security true pending-reboot search_path true pending-reboot seq_page_cost true pending-reboot server_encoding false pending-reboot session_replication_role true pending-reboot shared_buffers true pending-reboot shared_preload_libraries true pending-reboot sql_inheritance true pending-reboot ssl true pending-reboot ssl_ca_file false pending-reboot ssl_cert_file false pending-reboot ssl_ciphers false pending-reboot ssl_key_file false pending-reboot standard_conforming_strings true pending-reboot statement_timeout true pending-reboot stats_temp_directory false pending-reboot superuser_reserved_connections false pending-reboot synchronize_seqscans true pending-reboot synchronous_commit true pending-reboot syslog_facility false pending-reboot tcp_keepalives_count true pending-reboot tcp_keepalives_idle true pending-reboot tcp_keepalives_interval true pending-reboot temp_buffers true pending-reboot temp_tablespaces true pending-reboot timezone true pending-reboot track_activities true pending-reboot track_activity_query_size true pending-reboot track_commit_timestamp true pending-reboot track_counts true pending-reboot track_functions true pending-reboot track_io_timing true pending-reboot transaction_deferrable true pending-reboot transaction_read_only true pending-reboot transform_null_equals true pending-reboot unix_socket_directories false pending-reboot unix_socket_group false pending-reboot unix_socket_permissions false pending-reboot update_process_title true pending-reboot vacuum_cost_delay true pending-reboot vacuum_cost_limit true pending-reboot vacuum_cost_page_dirty true pending-reboot vacuum_cost_page_hit true pending-reboot vacuum_cost_page_miss true pending-reboot vacuum_defer_cleanup_age true pending-reboot vacuum_freeze_min_age true pending-reboot vacuum_freeze_table_age true pending-reboot vacuum_multixact_freeze_min_age true pending-reboot vacuum_multixact_freeze_table_age true pending-reboot wal_buffers true pending-reboot wal_compression true pending-reboot wal_keep_segments true pending-reboot wal_receiver_status_interval true pending-reboot wal_receiver_timeout true pending-reboot wal_sender_timeout true pending-reboot wal_sync_method false pending-reboot wal_writer_delay true pending-reboot work_mem true pending-reboot xmlbinary true pending-reboot xmloption true pending-reboot
default.oracle-ee-12.1
Parameter Name IsModifiable ApplyMethod _allow_level_without_connect_by true pending-reboot _always_semi_join true pending-reboot _awr_mmon_deep_purge_all_expired true pending-reboot _b_tree_bitmap_plans true pending-reboot _cursor_features_enabled true pending-reboot _cursor_obsolete_threshold true pending-reboot _db_block_prefetch_limit true pending-reboot _db_block_prefetch_quota true pending-reboot _db_file_noncontig_mblock_read_count true pending-reboot _disable_function_based_index true pending-reboot _enable_shared_pool_durations true pending-reboot _enable_space_preallocation true pending-reboot _fast_full_scan_enabled true pending-reboot _fix_control true pending-reboot _gby_hash_aggregation_enabled true pending-reboot _gc_defer_time false pending-reboot _grant_secure_role true pending-reboot _ignore_desc_in_index true pending-reboot _index_join_enabled true pending-reboot _index_partition_large_extents true pending-reboot _kks_obsolete_dump_threshold true pending-reboot _ktb_debug_flags true pending-reboot _like_with_bind_as_equality true pending-reboot _mutex_wait_scheme true pending-reboot _mutex_wait_time true pending-reboot _mv_refresh_use_hash_sj true pending-reboot _mv_refresh_use_stats true pending-reboot _no_or_expansion true pending-reboot _optim_peek_user_binds true pending-reboot _optimizer_adaptive_cursor_sharing true pending-reboot _optimizer_ads_use_result_cache true pending-reboot _optimizer_aggr_groupby_elim true pending-reboot _optimizer_autostats_job true pending-reboot _optimizer_batch_table_access_by_rowid true pending-reboot _optimizer_cartesian_enabled true pending-reboot _optimizer_cost_based_transformation true pending-reboot _optimizer_dsdir_usage_control true pending-reboot _optimizer_enhanced_filter_push true pending-reboot _optimizer_extended_cursor_sharing true pending-reboot _optimizer_extended_cursor_sharing_rel true pending-reboot _optimizer_gather_feedback true pending-reboot _optimizer_invalidation_period true pending-reboot _optimizer_join_elimination_enabled true pending-reboot _optimizer_join_sel_sanity_check true pending-reboot _optimizer_max_permutations true pending-reboot _optimizer_mjc_enabled true pending-reboot _optimizer_order_by_elimination_enabled true pending-reboot _optimizer_partial_join_eval true pending-reboot _optimizer_reduce_groupby_key true pending-reboot _optimizer_skip_scan_enabled true pending-reboot _optimizer_sortmerge_join_enabled true pending-reboot _optimizer_use_feedback true pending-reboot _orph_cln_interval true pending-reboot _partition_large_extents true pending-reboot _partition_view_enabled true pending-reboot _pred_move_around true pending-reboot _report_capture_cycle_time true pending-reboot _rollback_segment_count true pending-reboot _rowsets_enabled true pending-reboot _securefiles_concurrency_estimate true pending-reboot _smu_debug_mode true pending-reboot _sort_elimination_cost_ratio true pending-reboot _sql_plan_directive_mgmt_control true pending-reboot _sqlexec_progression_cost true pending-reboot _sqlmon_max_planlines true pending-reboot _suppress_identifiers_on_dupkey true pending-reboot _unnest_subquery true pending-reboot _use_single_log_writer true pending-reboot aq_tm_processes true pending-reboot archive_lag_target true pending-reboot audit_file_dest false pending-reboot audit_sys_operations false pending-reboot audit_syslog_level false pending-reboot audit_trail true pending-reboot background_core_dump true pending-reboot background_dump_dest false pending-reboot bitmap_merge_area_size true pending-reboot blank_trimming true pending-reboot buffer_pool_keep true pending-reboot buffer_pool_recycle true pending-reboot circuits true pending-reboot client_result_cache_lag true pending-reboot client_result_cache_size true pending-reboot commit_logging true pending-reboot commit_point_strength true pending-reboot commit_wait true pending-reboot commit_write false pending-reboot compatible true pending-reboot connection_brokers false pending-reboot control_file_record_keep_time true pending-reboot control_files false pending-reboot control_management_pack_access true pending-reboot core_dump_dest false pending-reboot cpu_count true pending-reboot create_bitmap_area_size true pending-reboot create_stored_outlines true pending-reboot cursor_bind_capture_destination true pending-reboot cursor_sharing true pending-reboot cursor_space_for_time true pending-reboot db_16k_cache_size true pending-reboot db_2k_cache_size true pending-reboot db_32k_cache_size true pending-reboot db_4k_cache_size true pending-reboot db_8k_cache_size false pending-reboot db_big_table_cache_percent_target true pending-reboot db_block_buffers true pending-reboot db_block_checking true pending-reboot db_block_checksum true pending-reboot db_block_size false pending-reboot db_cache_advice true pending-reboot db_cache_size true pending-reboot db_create_file_dest false pending-reboot db_create_online_log_dest_1 false pending-reboot db_create_online_log_dest_2 false pending-reboot db_create_online_log_dest_3 false pending-reboot db_create_online_log_dest_4 false pending-reboot db_create_online_log_dest_5 false pending-reboot db_domain true pending-reboot db_file_multiblock_read_count true pending-reboot db_file_name_convert false pending-reboot db_files true pending-reboot db_flashback_retention_target true pending-reboot db_index_compression_inheritance true pending-reboot db_keep_cache_size true pending-reboot db_lost_write_protect true pending-reboot db_name false pending-reboot db_recovery_file_dest false pending-reboot db_recovery_file_dest_size true pending-reboot db_recycle_cache_size true pending-reboot db_securefile true pending-reboot db_ultra_safe true pending-reboot db_unique_name false pending-reboot db_unrecoverable_scn_tracking false pending-reboot db_writer_processes true pending-reboot dbfips_140 true pending-reboot dbwr_io_slaves false pending-reboot ddl_lock_timeout true pending-reboot deferred_segment_creation true pending-reboot dg_broker_config_file1 false pending-reboot dg_broker_config_file2 false pending-reboot dg_broker_start false pending-reboot diagnostic_dest false pending-reboot disk_asynch_io false pending-reboot dispatchers true pending-reboot distributed_lock_timeout true pending-reboot dml_locks true pending-reboot dst_upgrade_insert_conv false pending-reboot enable_ddl_logging true pending-reboot enable_goldengate_replication true pending-reboot enable_pluggable_database false pending-reboot event false pending-reboot fal_client false pending-reboot fal_server false pending-reboot fast_start_mttr_target true pending-reboot fast_start_parallel_rollback true pending-reboot filesystemio_options false pending-reboot fixed_date false pending-reboot gcs_server_processes false pending-reboot global_context_pool_size true pending-reboot global_names true pending-reboot heat_map true pending-reboot hs_autoregister true pending-reboot ifile false pending-reboot inmemory_clause_default true pending-reboot inmemory_clause_default_memcompress true pending-reboot inmemory_clause_default_priority true pending-reboot inmemory_force true pending-reboot inmemory_max_populate_servers false pending-reboot inmemory_query true pending-reboot inmemory_size true pending-reboot inmemory_trickle_repopulate_servers_percent true pending-reboot instance_name false pending-reboot java_jit_enabled false pending-reboot java_max_sessionspace_size false pending-reboot java_pool_size false pending-reboot java_soft_sessionspace_limit false pending-reboot job_queue_processes true pending-reboot large_pool_size true pending-reboot ldap_directory_access false pending-reboot ldap_directory_sysauth false pending-reboot license_max_sessions true pending-reboot license_max_users true pending-reboot license_sessions_warning true pending-reboot listener_networks false pending-reboot local_listener false pending-reboot lock_name_space true pending-reboot lock_sga false pending-reboot log_archive_config false pending-reboot log_archive_dest false pending-reboot log_archive_dest_1 false pending-reboot log_archive_dest_state_1 false pending-reboot log_archive_format false pending-reboot log_archive_local_first false pending-reboot log_archive_max_processes true pending-reboot log_archive_min_succeed_dest true pending-reboot log_archive_trace true pending-reboot log_buffer true pending-reboot log_checkpoint_interval true pending-reboot log_checkpoint_timeout true pending-reboot log_checkpoints_to_alert true pending-reboot log_file_name_convert false pending-reboot max_dispatchers true pending-reboot max_dump_file_size true pending-reboot max_enabled_roles false pending-reboot max_shared_servers true pending-reboot max_string_size false pending-reboot memory_max_target true pending-reboot memory_target true pending-reboot nls_date_format true pending-reboot nls_length_semantics true pending-reboot nls_nchar_conv_excp true pending-reboot nls_time_format true pending-reboot nls_time_tz_format true pending-reboot nls_timestamp_format true pending-reboot nls_timestamp_tz_format true pending-reboot noncdb_compatible true pending-reboot o7_dictionary_accessibility false pending-reboot object_cache_max_size_percent true pending-reboot object_cache_optimal_size true pending-reboot olap_page_pool_size true pending-reboot open_cursors true pending-reboot open_links true pending-reboot open_links_per_instance true pending-reboot optimizer_adaptive_features true pending-reboot optimizer_adaptive_reporting_only true pending-reboot optimizer_capture_sql_plan_baselines true pending-reboot optimizer_dynamic_sampling true pending-reboot optimizer_features_enable true pending-reboot optimizer_index_caching true pending-reboot optimizer_index_cost_adj true pending-reboot optimizer_mode true pending-reboot optimizer_secure_view_merging true pending-reboot optimizer_use_invisible_indexes true pending-reboot optimizer_use_pending_statistics true pending-reboot optimizer_use_sql_plan_baselines true pending-reboot os_authent_prefix false pending-reboot os_roles false pending-reboot parallel_adaptive_multi_user true pending-reboot parallel_automatic_tuning true pending-reboot parallel_degree_level true pending-reboot parallel_degree_limit true pending-reboot parallel_degree_policy true pending-reboot parallel_execution_message_size true pending-reboot parallel_max_servers true pending-reboot parallel_min_servers true pending-reboot parallel_min_time_threshold true pending-reboot parallel_servers_target true pending-reboot parallel_threads_per_cpu true pending-reboot pdb_file_name_convert false pending-reboot permit_92_wrap_format true pending-reboot pga_aggregate_limit true pending-reboot pga_aggregate_target true pending-reboot plscope_settings true pending-reboot plsql_ccflags true pending-reboot plsql_code_type true pending-reboot plsql_debug true pending-reboot plsql_optimize_level true pending-reboot plsql_v2_compatibility true pending-reboot plsql_warnings true pending-reboot processes true pending-reboot processor_group_name false pending-reboot query_rewrite_enabled true pending-reboot query_rewrite_integrity true pending-reboot rdbms_server_dn false pending-reboot read_only_open_delayed false pending-reboot recovery_parallelism false pending-reboot recyclebin true pending-reboot redo_transport_user false pending-reboot remote_dependencies_mode true pending-reboot remote_listener false pending-reboot remote_login_passwordfile false pending-reboot remote_os_authent false pending-reboot remote_os_roles false pending-reboot replication_dependency_tracking true pending-reboot resource_limit true pending-reboot resource_manager_cpu_allocation true pending-reboot resource_manager_plan true pending-reboot result_cache_max_result true pending-reboot result_cache_max_size true pending-reboot result_cache_mode true pending-reboot result_cache_remote_expiration true pending-reboot resumable_timeout true pending-reboot rollback_segments false pending-reboot sec_case_sensitive_logon true pending-reboot sec_max_failed_login_attempts true pending-reboot sec_protocol_error_further_action true pending-reboot sec_protocol_error_trace_action true pending-reboot sec_return_server_release_banner true pending-reboot serial_reuse true pending-reboot service_names false pending-reboot session_cached_cursors true pending-reboot session_max_open_files true pending-reboot sessions true pending-reboot sga_max_size true pending-reboot sga_target true pending-reboot shadow_core_dump true pending-reboot shared_memory_address false pending-reboot shared_pool_reserved_size true pending-reboot shared_pool_size true pending-reboot shared_server_sessions true pending-reboot shared_servers true pending-reboot skip_unusable_indexes true pending-reboot smtp_out_server true pending-reboot sort_area_retained_size true pending-reboot sort_area_size true pending-reboot spatial_vector_acceleration true pending-reboot spfile false pending-reboot sql92_security true pending-reboot sql_trace true pending-reboot sqlnetora.default_sdu_size true pending-reboot sqlnetora.diag_adr_enabled true pending-reboot sqlnetora.recv_buf_size true pending-reboot sqlnetora.send_buf_size true pending-reboot sqlnetora.sqlnet.expire_time true pending-reboot sqlnetora.sqlnet.inbound_connect_timeout true pending-reboot sqlnetora.sqlnet.outbound_connect_timeout true pending-reboot sqlnetora.sqlnet.recv_timeout true pending-reboot sqlnetora.sqlnet.send_timeout true pending-reboot sqlnetora.tcp.connect_timeout true pending-reboot sqlnetora.trace_level_server true pending-reboot sqltune_category true pending-reboot standby_archive_dest false pending-reboot standby_file_management false pending-reboot star_transformation_enabled true pending-reboot statistics_level true pending-reboot streams_pool_size true pending-reboot temp_undo_enabled true pending-reboot thread false pending-reboot threaded_execution false pending-reboot timed_os_statistics true pending-reboot timed_statistics true pending-reboot trace_enabled true pending-reboot transactions true pending-reboot transactions_per_rollback_segment true pending-reboot undo_management false pending-reboot undo_retention true pending-reboot undo_tablespace true pending-reboot unified_audit_sga_queue_size true pending-reboot use_dedicated_broker false pending-reboot use_indirect_data_buffers false pending-reboot use_large_pages true pending-reboot user_dump_dest false pending-reboot utl_file_dir false pending-reboot workarea_size_policy true pending-reboot xml_db_events false pending-reboot
SQL Serverのdefault パラメータグループは、カラム表示が上手くできなかったので、一旦割愛。
Blog記事を書いたら非同期で自動的にAmazon Chime Roomにwebhookで投稿する
実現したいこと

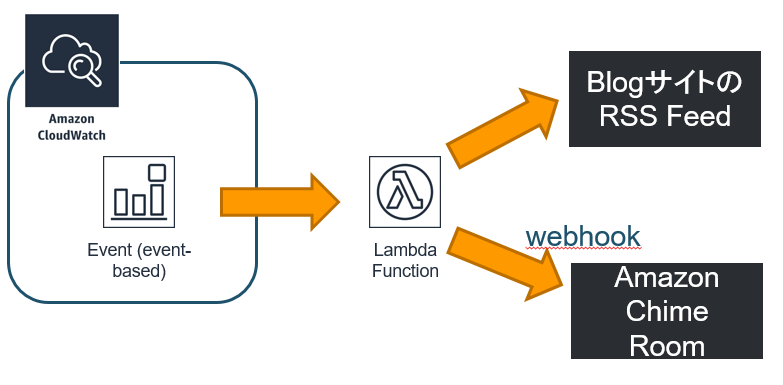

構成イメージ
手順
1. Amazon ChimeでChime Roomを作成する
今回は事前にAmazon Chimeは利用済みで、Amazon Chime ApplicationもPCにインストール済み、すでにChimeにログイン、チャットが可能なものとします。まず最初にChime roomを作成します。

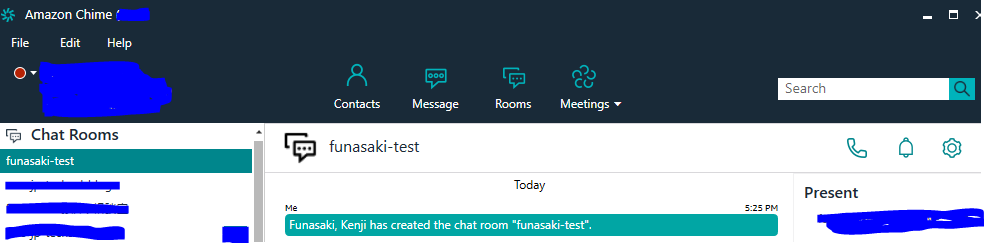

Chimeアプリ上で「File」→「New Chat Room」を選択します。

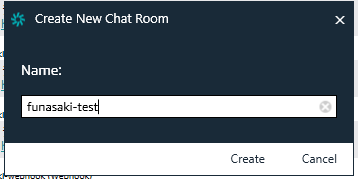

Nameを記入後に、Createをクリックします。
2. webhookの設定をする

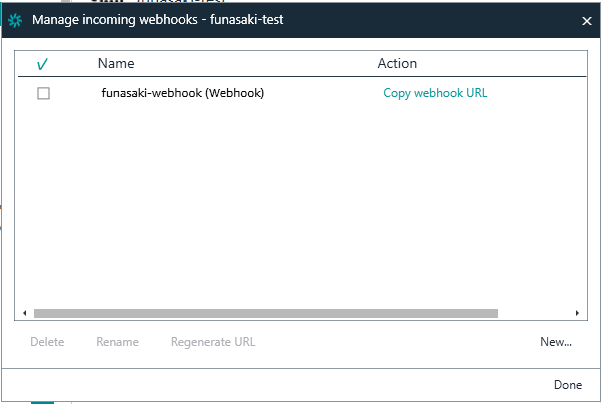

作成したChime Room右上にある設定ボタンをクリックして、「Manage Webhook」を選択します。「New」を選択してwebhook名を記入してcreateを選択すると以下が表示されます。
こちらにあるCopy Webhook URLを選択して、URLをメモしておきます。後程使います。
3. RSS Read用のLambda Functionを作成する
今回はPython 2.7を使用します。
lambda_function.pyというファイルを作成します。中身は下記です。
import feedparser import requests import json import datetime from time import mktime def lambda_handler(event, context): NewsFeed = feedparser.parse("http://[Blog SiteのRSSのURL]") print 'Number of RSS posts :', len(NewsFeed.entries) entry = NewsFeed.entries[0] print 'Post Title :',entry.title time = entry.published_parsed result = datetime.datetime.now() - datetime.datetime.fromtimestamp(mktime(time)) s = result.total_seconds() if s < 3600: message = 'Title: ' + entry.title + '\r\n' + 'URL: ' + entry.link url = 'https://hooks.chime.aws/incomingwebhooks/xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx' payload = {"Content": message} headers = {'content-type': 'application/json'} response = requests.post(url, data=json.dumps(payload), headers=headers) return 'updated' else: return 'no updated' return { 'message' : message }
こちらのファイルを作成後、必要なライブラリをpipでインストールします。
$ pip install feedparser -t . $ pip install requests -t .
その後、先ほどのpythonのファイルを含めてzipで固めます。
$ zip -r lambda_function.zip ./*
AWS CLIで、このzipをアップします。(AWS CLIの設定は事前に設定済みとします。)
$ aws lambda update-function-code --function-name RSSReaderFunction --zip-file fileb://lambda_function.zip
aws configureコマンドを実行して、default regionは指定済みとします。

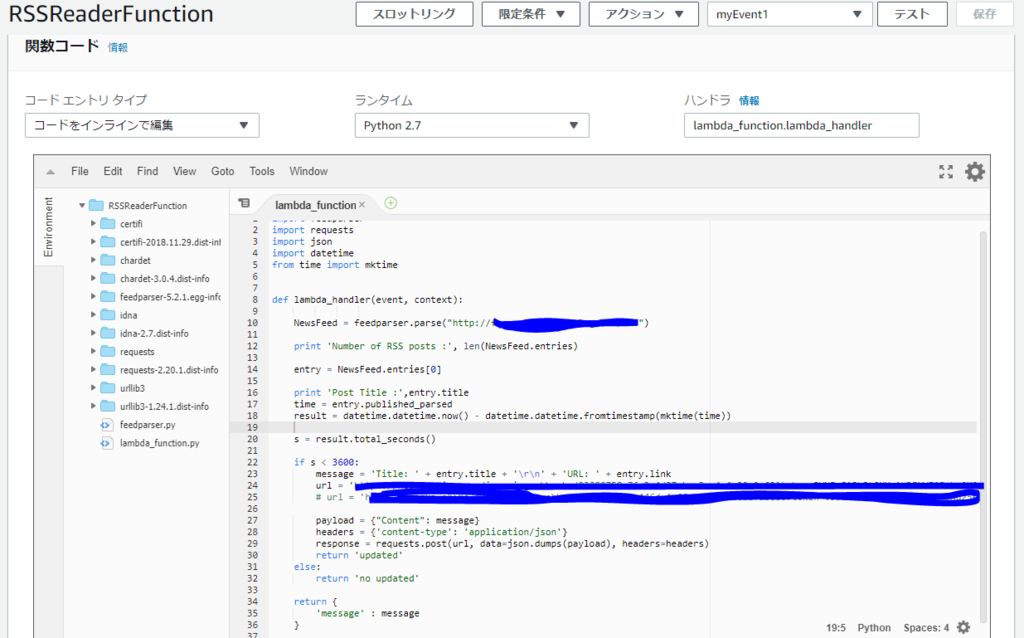

Lambda functionのアップデートが完了したら、AWS LambdaのManagement Consoleを見てみます。(事前にブログサイト側でもテスト記事の投稿をしておきます。今回のLambda functionは、BlogサイトのRSSを読み込んで、直近1時間以内に記事がpublishされれば、それをChime roomに投稿するため)

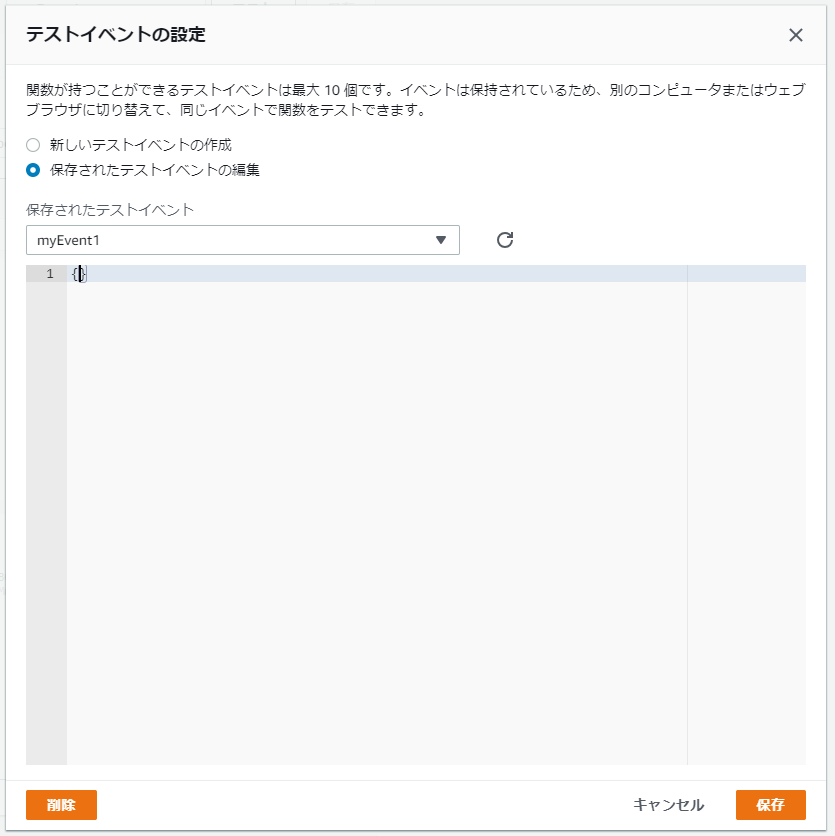

ここではLambdaを実行するための"myEvent"を既に定義してありますが、以下のようにmyEventを作成しておきます。

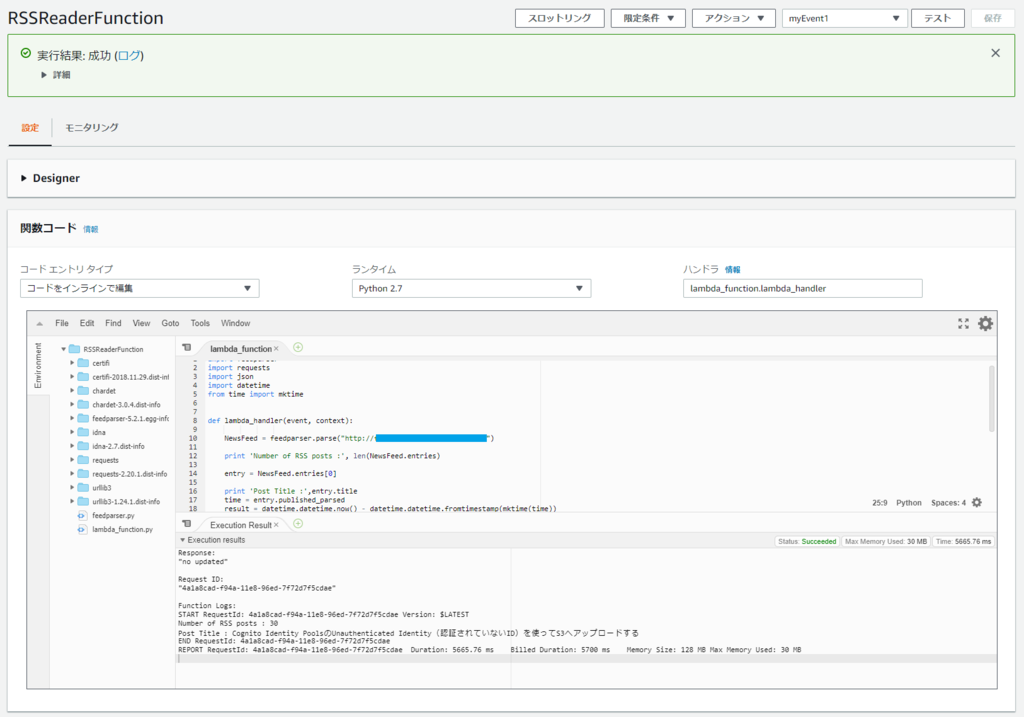

作成したLambda functionとイベントを使ってテストしてみます。
無事テストが成功し、Chime roomにもwebhookで書き込まれたことが確認できました。
あとは、このLambda FunctionをCloudWatch Eventで1時間に1回定期実行させます。
4. CloudWatch Eventで1時間に1回Lambda Functionをinvokeする
Amazon CloudWatchのManagement Consoleを開いて、CloudWatch Eventのルールを作成します。イベントソースにて「スケジュール」を選択し、1時間おきに動作する設定にします。ターゲットはLambda 関数で、作成したLambda Functionを選択します。

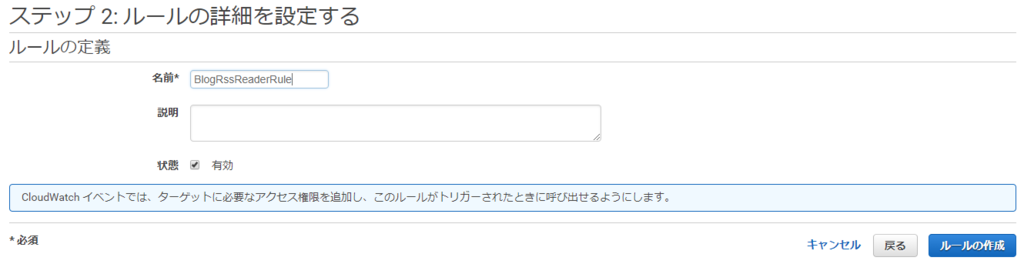

その次の画面でルール名を入力して、「ルールの作成」をクリックします。
作成したルールの状態が有効になっていることを確認できれば、1時間おきに、先ほどのRSSReaderFunctionが呼ばれ、1時間以内に記事がpublishされていれば、RSS Feedにより最新の記事のタイトルとリンクがChime roomにpostされます。
以上で完了です!
Cognito Identity PoolsのUnauthenticated Identity(認証されていないID)を使ってS3へアップロードする
実現するのは以下のイメージです。
JavaScriptを使って、Cognito Identity Poolから必要なトークンを取得、トークンに含まれる一時的な認証情報を使って、S3へファイルをアップロードします。
前提条件
Cognito ID Poolを作成する

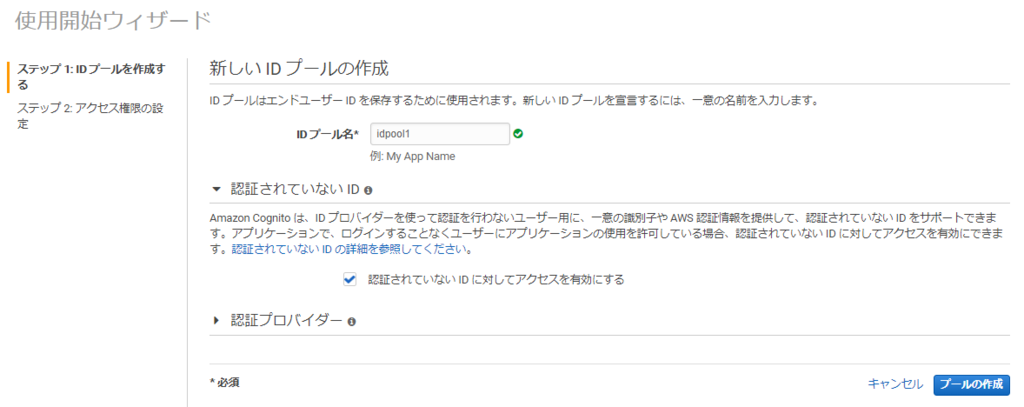

IDプール名を入れて、認証されていないIDに対してアクセスを有効にします。

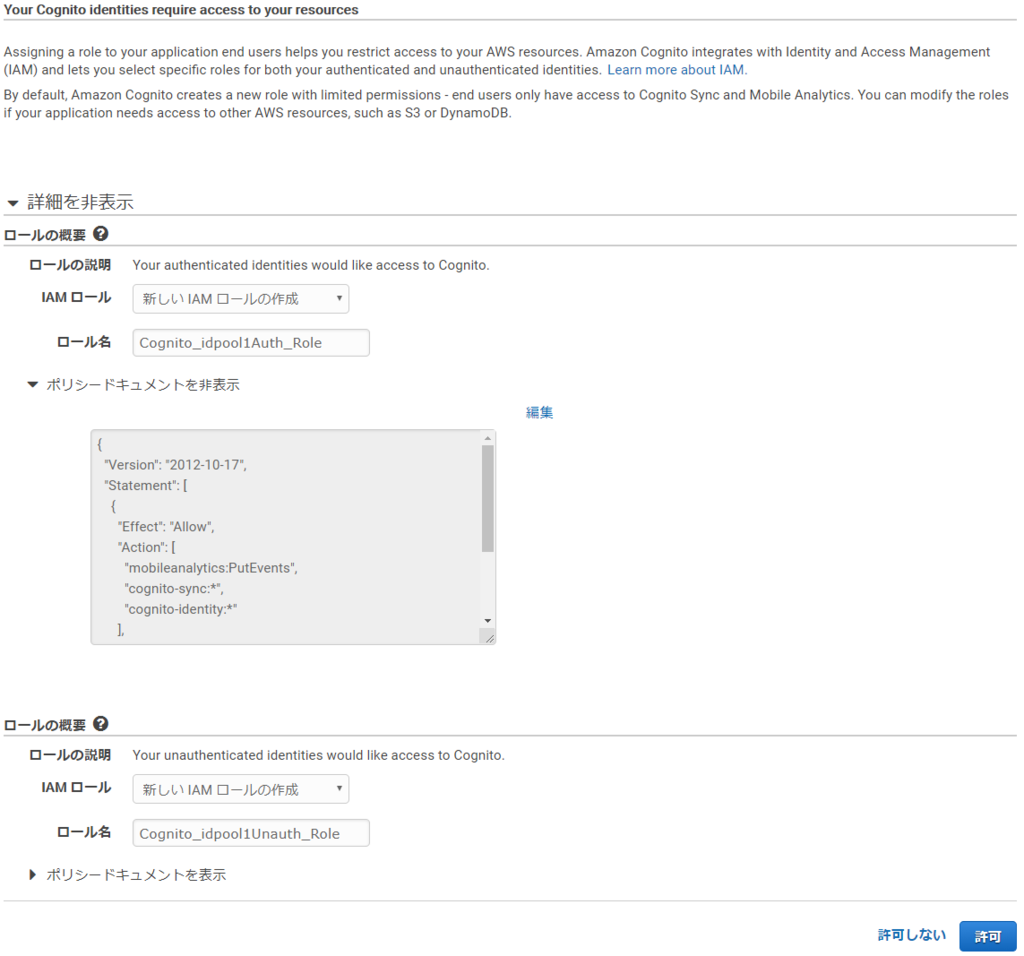

作成するプールのIDに割り当てるIAMロールを作成

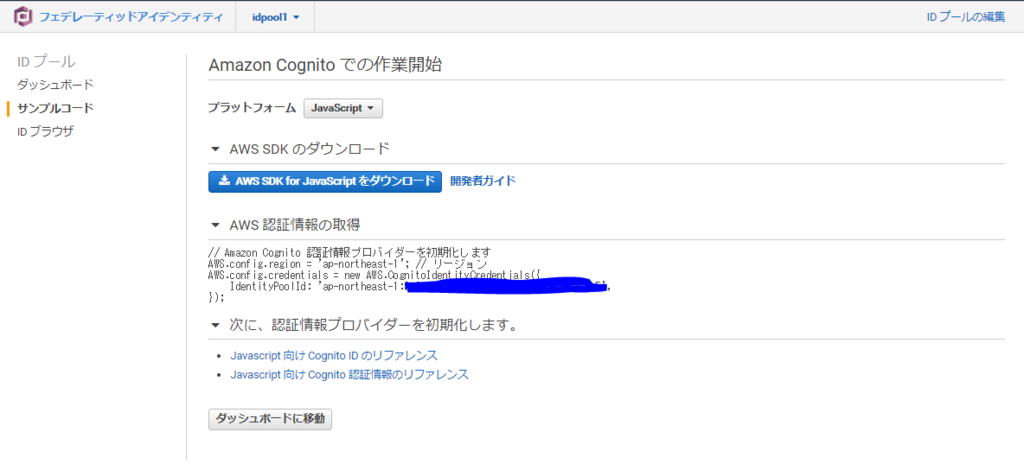

JavaScript用のコードの確認
こちらにあるIdentityPoolIdは後程使います。
作成したIAMロールにS3の権限を与える

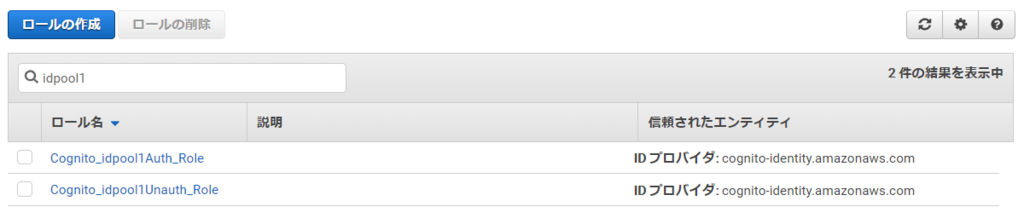

UnAuthRoleとAuthRoleが作成されているのが分かります。

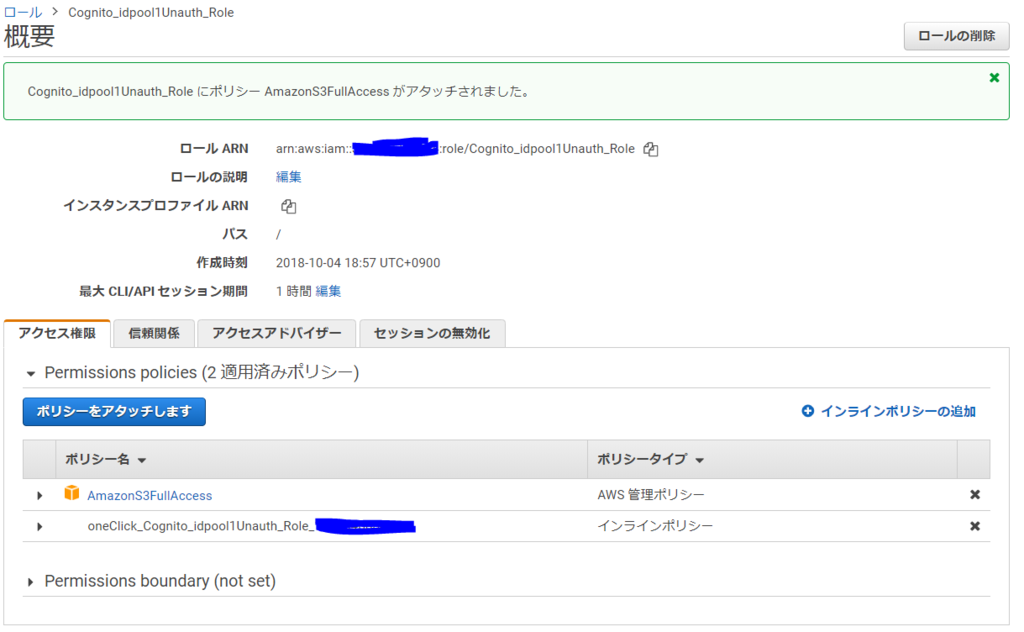

今回はUnAuthRoleを使うので、こちらにAmazonS3FullAccess権限を追加します。今回はテスト用にFullAccess権限を追加していますが、最小権限の権限を追加するようにしてください。
JavaScriptファイルを作成する
s3upload-unauth.htmlを作成します。
<html> <head> <script type="text/javascript" src="https://sdk.amazonaws.com/js/aws-sdk-2.6.9.min.js"></script> </head> <body> <input type='file' name='upload' id='upload-file'> <button id='upload-button'>upload</button> <div id="results"></div> <script type="text/javascript"> var upload = document.getElementById('upload-button'); var results = document.getElementById('results'); upload.addEventListener('click', function() { var uploadFile = document.getElementById('upload-file'); var file = uploadFile.files[0]; if(file) { var params = { IdentityPoolId: "ap-northeast-1:xxxxxxxx-xxxxx-xxxxxx-xxxx-xxxxxxxxxx" }; AWS.config.region = 'ap-northeast-1'; AWS.config.credentials = new AWS.CognitoIdentityCredentials(params); AWS.config.credentials.get(function(err) { if (!err) { console.log(AWS.config.credentials.identityId); var bucket = new AWS.S3({params: {Bucket: 'mybucketname'}}); var params1 = {Key: file.name, ContentType: file.type, Body: file}; bucket.putObject(params1, function (err, data) { results.innerHTML = err ? 'ERROR!' : 'UPLOADED.'; }); } }); } else { results.innterHTML = 'Noting to upload.'; } }, false); </script> </body> </html>
IdentityPoolIdの部分に作成したCognito IDプールのIDを入れます。さらに、mybucketnameの部分に自身のバケット名を入れます。
Apache Httpd Serverをインストールして、作成したJavaScriptを配置する
sudo yum install httpd -y sudo service httpd start
/var/www/html配下に作成したs3upload-unauth.htmlを配置する。
AWS Systems Managerでパッチコンプライアンスのステータスを確認する
AWS Systems ManagerのエージェントをWindows EC2インスタンスにインストール済みで、マネージドインスタンスとして確認がとれているインスタンスのパッチコンプライアンスのステータスを確認してみたいと思います。

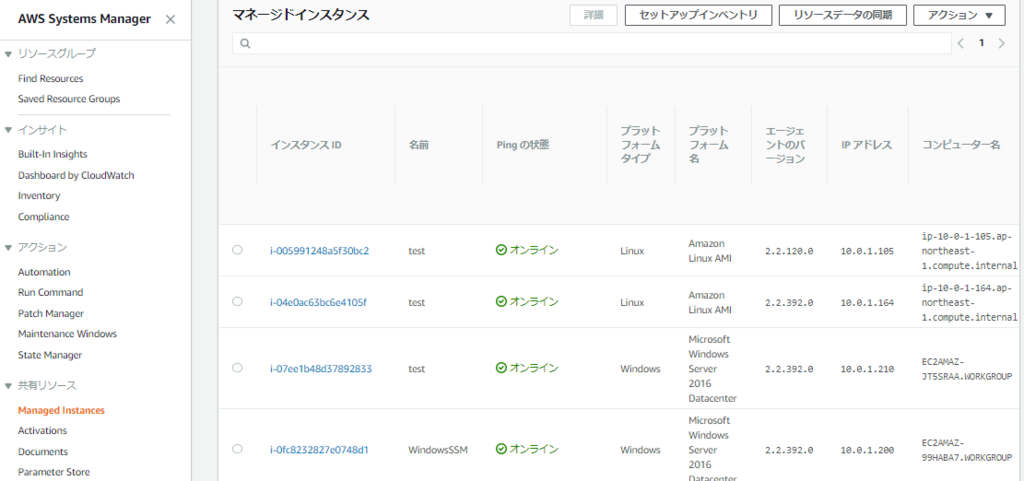

以下のi-0fc8232827e0748d1のマネージドインスタンスをベースにして見てみます。
AWS Systems Managerにてコンプライアンスのステータスを確認するには、Systems Manager(SSM)のマネージメントコンソールにて、Complianceを選択します。
こちらを見ると、私の環境で以前確認したインスタンスのコンプライアンスステータスが見れますが、今回見ようとしているi-0fc8232827e0748d1はまだ何も表示されていません。
こちらの状態でAWS-RunPatchBaselineのコマンドで、引数をScanで指定して実行してみます。同じ画面の下部でScanを指定して、コマンドを実行します。

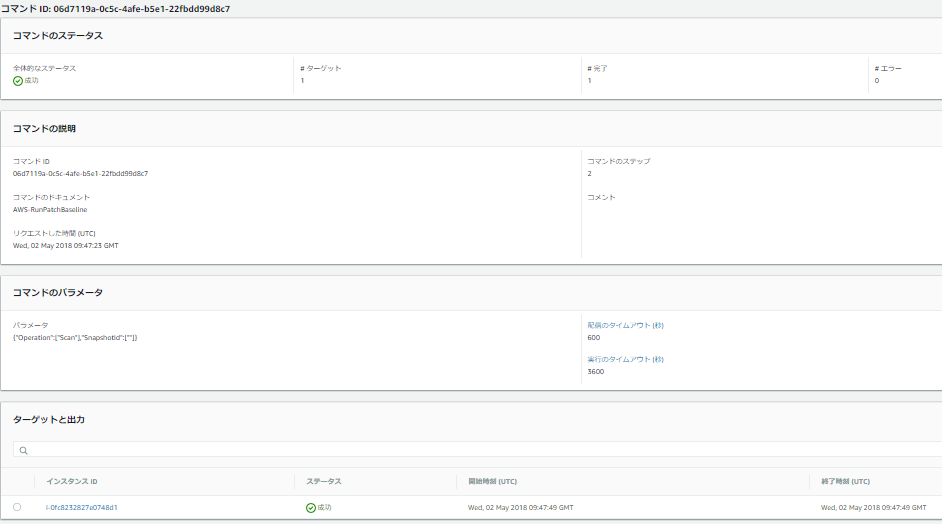

AWS-RunPatchBaselineのコマンドでScanを実行した結果、成功と表示されました。
実行した結果、以下のメッセージが出力されました。
Patch Summary for i-0fc8232827e0748d1 PatchGroup : BaselineId : pb-04ba050f612fba3a6 SnapshotId : e2a05e73-f205-4959-88c9-c763bb3c63b2 OwnerInformation : OperationType : Scan OperationStartTime : 2018-05-02T09:47:31.5522091Z OperationEndTime : 2018-05-02T09:47:47.0833793Z InstalledCount : 1 InstalledOtherCount : 11 FailedCount : 0 MissingCount : 1 NotApplicableCount : 2403 EC2AMAZ-99HABA7 - PatchBaselineOperations Assessment Results - 2018-05-02T09:47:49.520 Scan found the following updates missing: KB4093120
PatchBaselineOperaseion Assessment結果としては、一部Updateが不足しているようです。この状態でAWS Systems Managerのコンプライアンスの画面を見てみます。

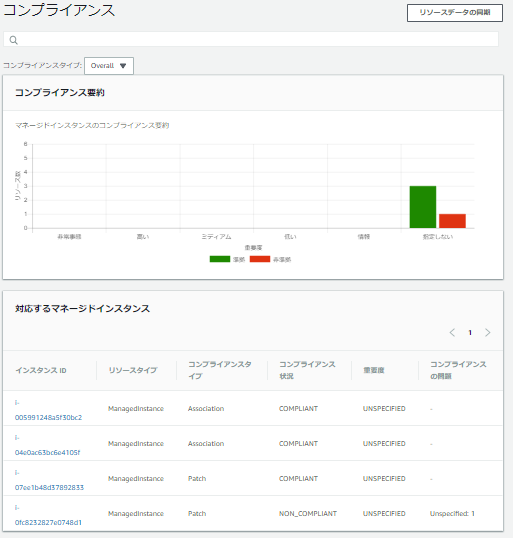

先ほどのコンプライアンスのスクリーンショットと比較してみてください。先ほどは表示されていなかったi-0fc8232827e0748d1のコンプライアンスステータスが表示されるようになり、かつPatchBaselineOperationに非準拠であるため、グラフで赤く表示されているのが分かります。
このように、AWS-RunPatchBaselineのScanを実行するだけで、自動でコンプライアンスのステータスを確認できるようになるようです。
以上で、パッチコンプライアンスのステータスを確認することができました。PatchBaselineのインストールの手順は前回の記事で紹介しているので、今回は割愛します。
AWS Systems ManagerでAWS-RunPatchBaselineをRun Commandで実行して、Windowsインスタンスにパッチを適用する
以前の記事にあるように、EC2 WindowsインスタンスをAWS Systems Manager(SSM)のマネージドインスタンスとして登録してあるのを前提とします。
本記事では、このWindowsのマネージドインスタンスにSSMのRun CommandでAWS-RunPatchBaselineを実行してみます。
AWS-RunPatchBaselineでは引数として、ScanまたはInstallを選べます。
SSM ドキュメント AWS-RunPatchBaseline について - AWS Systems Manager
ですので、最初にScanを実行して、適用すべきパッチを確認した後で、Installを実行してみます。
AWS-RunPatchBaselineのScanの実行
SSMの画面で、Run Commandの画面を開いて、コマンドの実行を選択します。

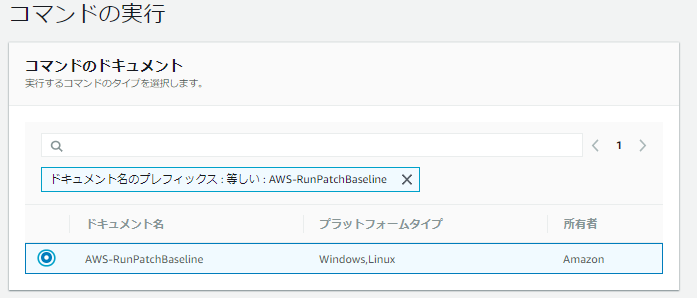

続いて、検索条件に「ドキュメントのプレフィックス名」で「等しい」でAWS-RunPatchBaselineを入力して、ドキュメントをフィルターします。表示されたAWS-RunPatchBaselineを選択します。

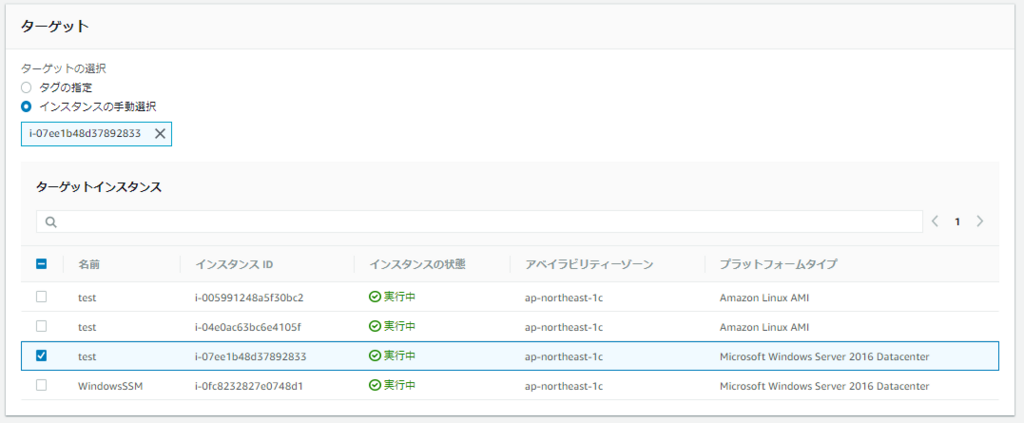

同じ画面で、続いてターゲットインスタンスを指定します。

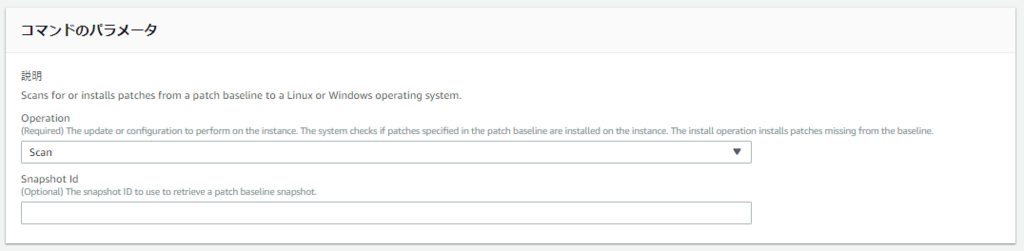

さらに同じ画面で、コマンドのパラメータでScanを選択して、
実行を選択します。
その後、進行中のステータスが表示されます。
その後、実行が成功し、実行ターゲットであったマネージドインスタンスのリンクを開いてみると以下のように今回のAWS-RunPatchBaselineのコマンドの実行結果が表示されます。
こちらのスクリーンショットの画面上部にあるプラグイン名 PatchLinuxのコマンドはステータスが成功にはなっていますが、出力を見ると、
Step execution skipped due to incompatible platform. Step name: PatchLinux
と表示され、Linuxのpatch適用はskipされたことがわかります。今回のターゲットはWindowsインスタンスのためです。
出力2を確認してみます。
Scan found the following updates missing: KB4093120
KB4093120のアップデートが不足しているようです。
記事執筆時点では、2018年5月2日ですが、2018年4月18日時点で出ている以下の修正が必要なようです。
https://support.microsoft.com/ja-jp/help/4093120/windows-10-update-kb4093120
AWS-RunPatchBaselineでInstallを実行してみる。
上記アップデートを実行してみます。
Scan時同様に、AWS Systems ManagerのRun Command画面でコマンドの実行を選択し、AWS-RunPatchBaselineのドキュメントを選択し、ターゲットのインスタンスも同様に選択します。そのうえでコマンドのパラメータはInstallを選択します。

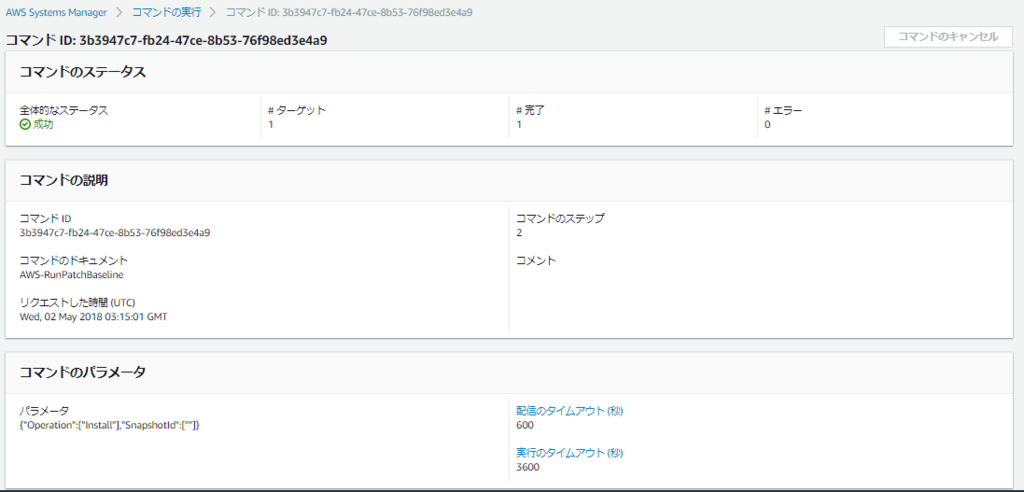

Installの実行開始後、しばらくアップデートに時間がかかり、その間はステータスが進行中になっています。実行が完了して、成功すると、以下のように表示されます。

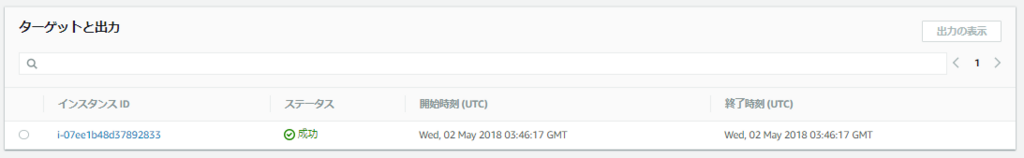

同じ画面でターゲットのインスタンスのリンクをクリックして

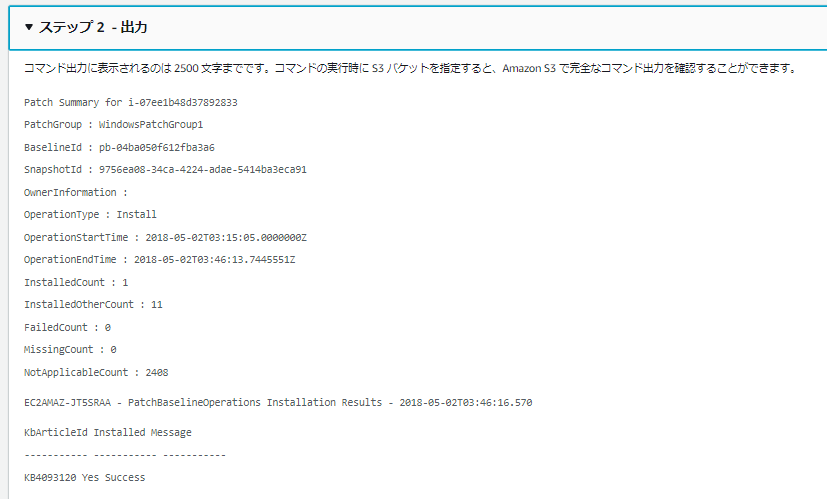

実際のInstallの実行結果を確認します。
KB4093120 Yes Success
インストールが問題なく実行完了できたことがわかりました。
Windows Server 2016 AMIを起動して、AWS Systems Managerでマネージドインスタンスとして管理する
AWSから提供されているWindows Server 2016のAMIには、デフォルトでAWS Systems Managet(SSM)のエージェントがインストールされています。SSMエージェントのパスは以下です。
C:\Program Files\Amazon\SSM\amazon-ssm-agent.exe
SSMエージェント用のIAMロールをこちらのEC2 Windowsインスタンスに割り当てておかないと、上記amazon-ssm-agent.exeを実行しても、マネージドインスタンスとしてSystems Managerのマネージメントコンソールからは見えてきません。
以下ページにある手順でIAMロールを作成して、インスタンスに割り当てて、amazon-ssm-agent.exeを実行したら、マネージドインスタンスとして表示されました。
Systems Manager のアクセス設定 - AWS Systems Manager
Windows EC2インスタンスを起動する際に、最初からこちらのIAMロールを割り当てて起動すると、自動でSSMエージェントが実行されて、マネージドインスタンスとして表示されるようです。
注意事項
起動したインスタンスは、アウトバウンドでSystems Managerのエンドポイントと通信できる必要があります。Systems Manager用のVPCエンドポイントを設定するか、インターネットにアウトバウンド通信できるように、起動したインスタンスのサブネットのルートテーブルを設定する必要があります。
AWS Systems Managerでインベントリを実行して、/home/ec2-user以下にある*.txtファイルを確認、さらにカスタムインベントリで独自メタデータも登録・確認してみる。
事前にEC2インスタンスにSSM(Systems Manager)エージェントをインストール済みとします。

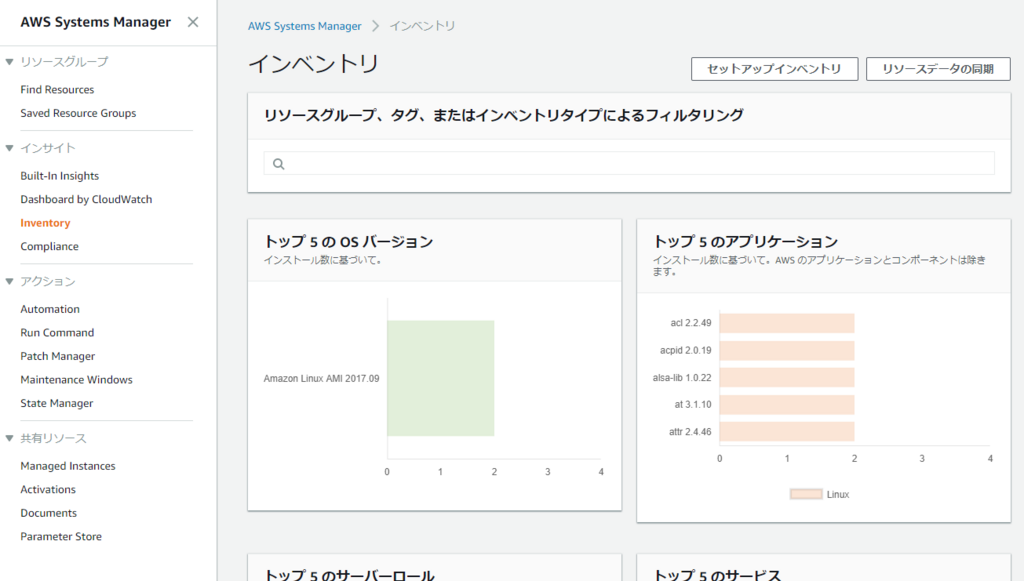

まずはAWS Systems Managerのマネージメントコンソールにて、Inventoryを選択して、セットアップインベントリを選択します。
「インスタンスの手動選択」にて、該当するインスタンスを選択します。スケジュールはCronスケジュールビルダーを選んで、今回は30分ごとの実行とします。
同じ画面のパラメータにて、デフォルト設定のままで、ファイルの部分のパスに/home/ec2-userを、パターンに*.txtを、再帰的にチェックを入れて「セットアップインベントリ」を選択します。
Managed Instancesを選択して、先ほど指定したインスタンスを選択します。
インベントリタブを選択して、インベントリタイプにてAWS:Fileを選択します。

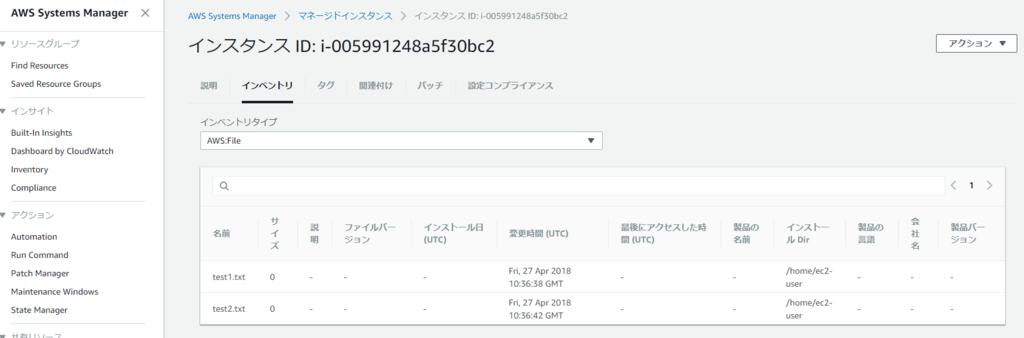

最初は何もFile情報が表示されませんが、少し時間がたってから確認すると、以下のようにファイルがあることが確認できます。
カスタムインベントリを実行してみる
続いて、こちら にあるCustom Inventoryの方法を用いて、独自のメタデータをインスタンスに割り当ててみます。
独自のメタデータをインスタンスに割り当てる方法として、AWS CLIを使う方法が紹介されていたので、こちらでやってみます。
AWS CLIでコマンドを実行するのに必要な権限を割り当てた上で以下コマンドを実行します。
https://docs.aws.amazon.com/systems-manager/latest/userguide/sysman-inventory-walk-custom.html
State Managerを選択して、関連づけ(AWS-GatherSoftwareInventory)を選択して「関連付けの編集」を選択します。
aws ssm put-inventory --instance-id "xxxx" --items '[{"CaptureTime": "2018-04-30T10:01:01Z", "TypeName": "Custom:RackInfo", "Content":[{"RackLocation": "Bay B/Row C/Rack D/Shelf E"}], "SchemaVersion": "1.0"}]'
実行後に、そのメタデータが取得できるようになっているかを以下コマンドで確認します。
aws ssm list-inventory-entries --instance-id xxx --type-name "Custom:RackInfo"
結果は以下のように出力され、正しくメタデータが登録されていることがわかりました。
{ "InstanceId": "i-005991248a5f30bc2", "TypeName": "Custom:RackInfo", "Entries": [ { "RackLocation": "Bay B/Row C/Rack D/Shelf E" } ], "SchemaVersion": "1.0",[f:id:kenjifunasaki:20180430210852p:plain] "CaptureTime": "2018-04-30T10:01:01Z" }

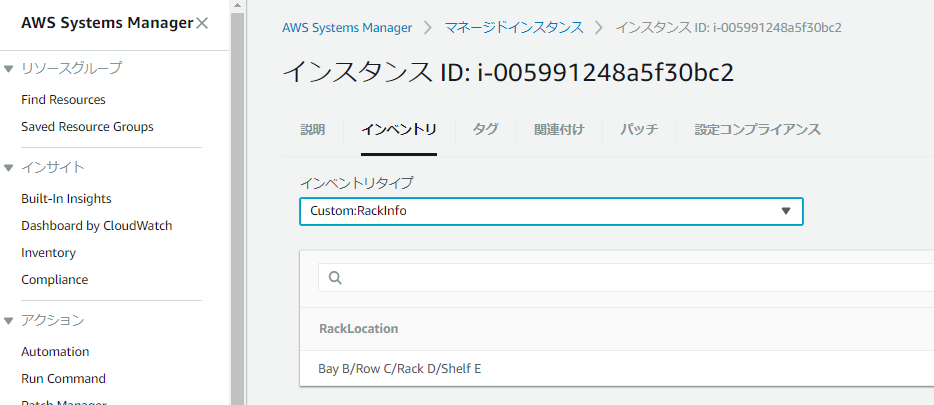

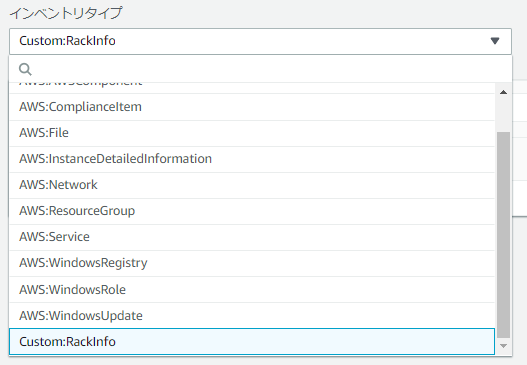

Management Console上でも以下のようにカスタムインベントリ情報を選択ができ、
登録したメタデータも確認ができました。
注意事項
一つのマネージドインスタンスに複数のインベントリを関連づけることはできません。すでに別のインベントリが関連付けされていると、別のインベントリの実行が失敗しますので、ご注意ください。
